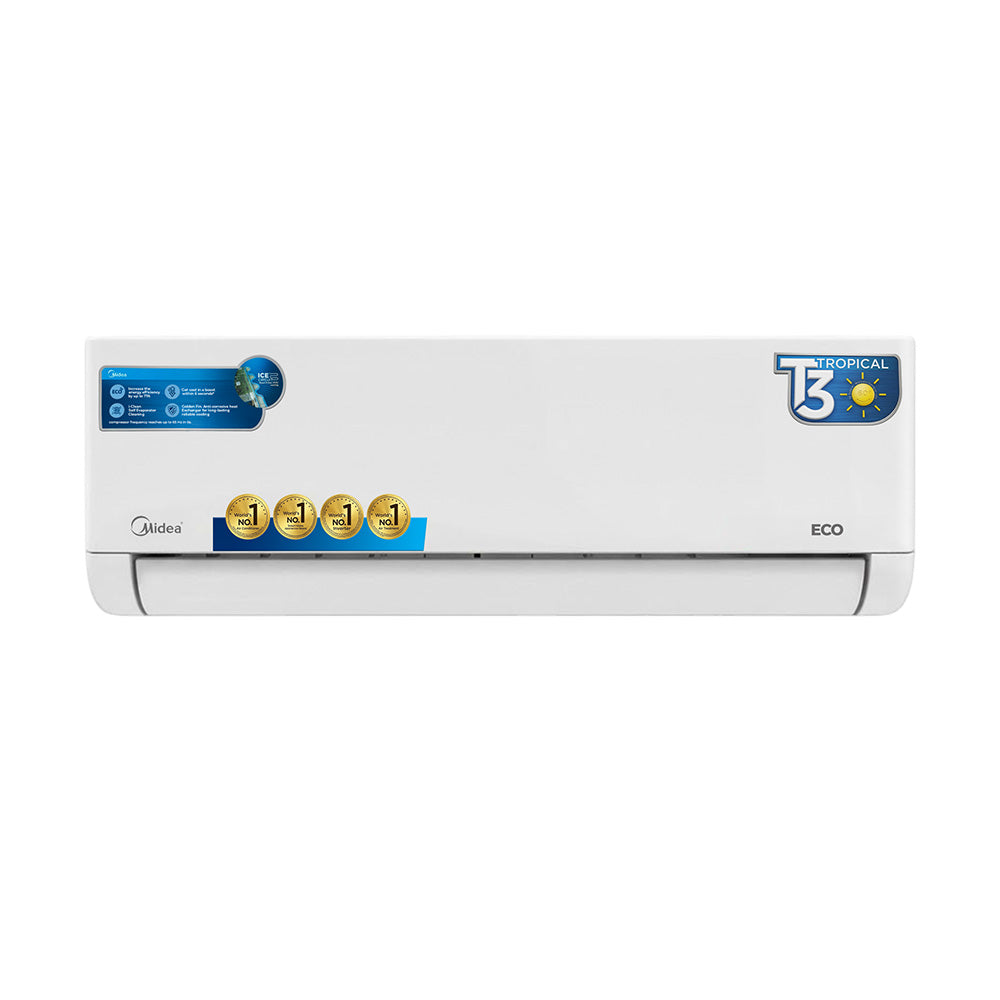

MIDEA 1.0 TON T3 ECO INVERTER AC Model MSAG2B-12HRDN1

The Midea MSAG2B‑12HRDN1 is a compact DC inverter AC built with tropical T3 Pro technology, designed for Pakistan’s hot climate. With Eco Function, self‑cleaning, low‑noise operation, and hyper graphene coating, it ensures efficient cooling, durability, and comfort for small to medium rooms.

Benefits

• T3 Tropic Pro Technology – Stable performance in high ambient temperatures (up to 60°C).
• Eco Function – Smart energy‑saving mode reduces electricity consumption while maintaining comfort.
• Self‑Cleaning – Prevents dust and bacteria buildup inside the unit, improving hygiene and efficiency.
• Low Noise Operation – Silent design for peaceful indoor environments.
• Hyper Graphene Coating – Advanced protective coating on fins and evaporator for durability and corrosion resistance.

Specifications

• Brand: Midea
• Model: MSAG2B‑12HRDN1 (Eco Series)
• Type: Wall‑Mounted DC Inverter AC
• Capacity: 1.0 Ton
• Cooling Capacity: 12,000 BTU/h
• Cooling Input Power: 1230 W
• Cooling Current: 5.35 A
• EER (Energy Efficiency Ratio): 2.86 W/W
• CSPF (Seasonal Performance Factor): 3.6 W/W
• Heating Capacity: 13,000 BTU/h
• Heating Input Power: 1300 W
• Heating Current: 4.91 A
• COP (Coefficient of Performance): 3.37 W/W
• Rated Power Input: 2300 W
• Rated Current: 10.5 A
• Indoor Unit:
  • Capacitor: 1.5 μF
  • Fan Speeds (Hi/Mi/Lo): 1100/900/700 r/min
  • Air Flow (Hi/Mi/Lo): 574/445/382 m³/h
  • Noise Level (Hi/Mi/Lo): 38/34/30 dB(A)
  • Dimensions (W × D × H): 802 × 200 × 295 mm
  • Packing Dimensions: 875 × 285 × 395 mm
  • Net/Gross Weight: 8/11 kg
• Outdoor Unit:
  • Fan Motor Speed: 780 r/min
  • Air Flow: 1800 m³/h
  • Noise Level: 52 dB(A)
  • Dimensions (W × D × H): 720 × 270 × 495 mm
  • Packing Dimensions: 835 × 300 × 540 mm
  • Net/Gross Weight: 20/22 kg
• Refrigerant: R410A / 0.74 kg
• Voltage Supply: 220–240V, 1Ph, 50Hz
